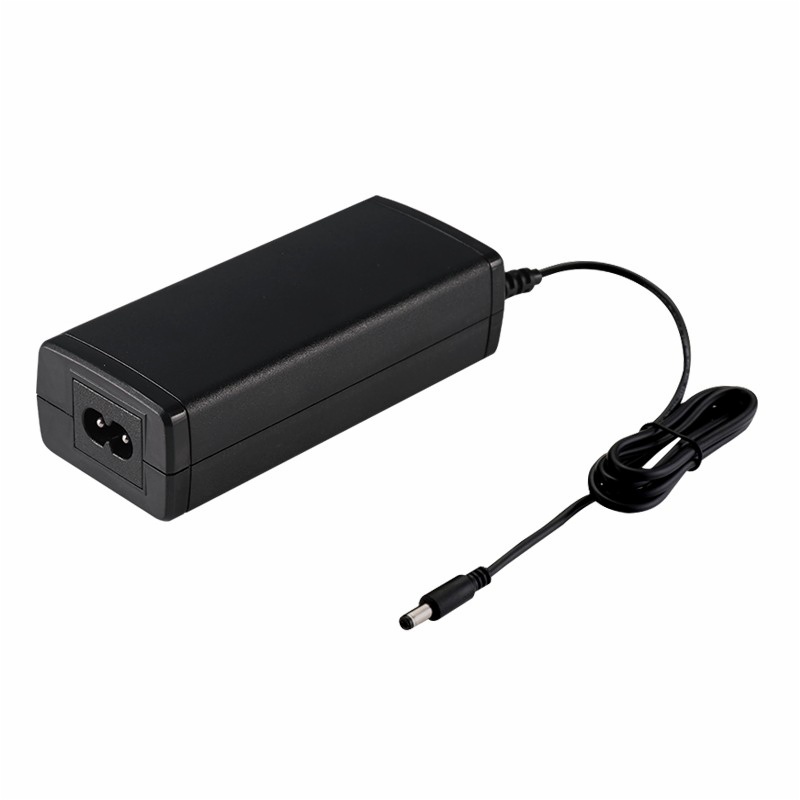

36W Lead Acid Battery Charger YS25

Item Code:YS25 Features:

Rated Power: 36W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.1W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP
Output: 5-48V

Description
Details

Battery charger	Lead acid battery charger
Model：	YS25
Rated Power:	36W max.
Input：	100-240VAC 50/60Hz
Output Voltage:	7.2V / 14.4V / 28.8V
Output Current:	0.1-3A Constant Current
Input current:	0.8A max.
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	0.25mA Max. at 264VAC input
No Load Power Consumption ：	＜0.3W
Protections：	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP)：	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	≤Iout*150%
Working TEMP.:	‘-20-50°C
Working Humidity：	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	,-40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input wire	EU,UK,US,AU plug option
Certificates and approvals:	CE,EMC,RoHS,REACH
LVD	EN 60335-1 /EN60335-2-29
EMI EMISSION:	EN55014-1/EN55014-2 EN61000-3-2 EN61000-3-3
MTBF:	100000 hours minimum at full load at 25 C ambient
Dimension:	1054528.5mm
Weight:	150g
Packing:	50PCS/CTN, 343137cm

Model:	YS25-0753000	YS25-1502000	YS25-3001200
DC Voltage:	7.2-7.5V	14.4-15V	28.8-30V
Rated Current:	2000mA	2500mA	1200mA
Current Range:	100-2000mA	100-2500mA	100-1200mA
Rated Power:	15W	36W	36W
Ripple & Noise(max.):	80mVp-p	120mVp-p	240mVp-p
Voltage Range:	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%
LED indicator	Red is charging ,Green is idle and full charged. There will be a continous float charging current 150mA after full charged .
Setup,Rise,Hold up time:	1000ms,50ms,16ms at full load
