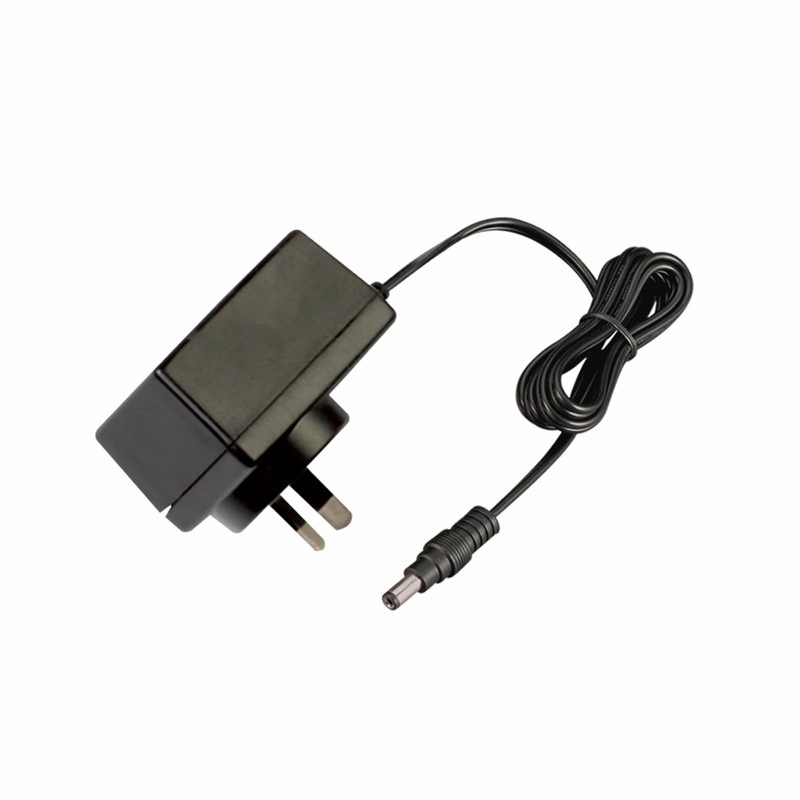

3W Linear Power Adapter YL3A

Item Code:YL3A Features:

Rated Power: 3W
Input: 100-240V AC, 50 / 60Hz
Standby Power: ≤0.1W
Efficiency Level: DOE VI / COCV5
Protection: Short Circuit, OCP, OVP, OTP
Output: 5-36V

Description
Details

Linear power adapter	Wall plug-in type
Model：	YL3A
Rated Power:	3W
Input：	220-240AC 50Hz
Output Voltage:	5-36V（AC/DC）
Output Current:	80-300mA
Input current:	0.025 max.
Inrush Current:	65 Amps max. at 230VAC/50Hz,full load
Leakage Current:	0.25mA Max. at 264VAC input
Efficiency:
No Load Power Consumption ：	＜ 1.5W
Protections：	Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP)：	Protection to Zero Voltage
Over Voltage Protection (OVP):	≤Vout*150%
Over Current Protection (OCP):	110%-180%
Working TEMP.:	-20°C-50°C
Working Humidity：	5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude:	40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.
Input Plug:	AU2pin
Certificates and approvals:	UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION:	Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3
EMS IMMUNITY:	ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11
MTBF:	100000 hours minimum at full load at 25 C ambient
Life:	3-5 years alternative
Dimension:	634133mm
Weight:	220g
Packing:	100PCS/CTN,414124cm

Model:	YL3-0500300	YL3-0900200	YL3-1500200	YL3-1900150	YL3-2400120	YL3-3600080
AC/DC Voltage:	5V	9V	15V	19V	24V	36V
Rated Current:	300mA	200mA	200mA	150mA	120mA	80mA
Current Range:	0-300mA	0-200mA	0-200mA	0-150mA	0-120mA	0-80mA
Rated Power:	1.5W	1.8W	3W	2.85W	2.88W	2.88W
Ripple & Noise(max.):	50mVp-p	90mVp-p	150mVp-p	190mVp-p	240mVp-p	360mVp-p
Voltage Tolerance:	±5%	±5%	±5%	±5%	±5%	±5%
Line Regulation:	±3%	±3%	±3%	±3%	±3%	±3%
Load Regulation:	±5%	±5%	±5%	±5%	±5%	±5%
Setup,Rise,Hold up time:	3 second max./40 MS max./5 MS max. at 100VAC input and output max. load.
