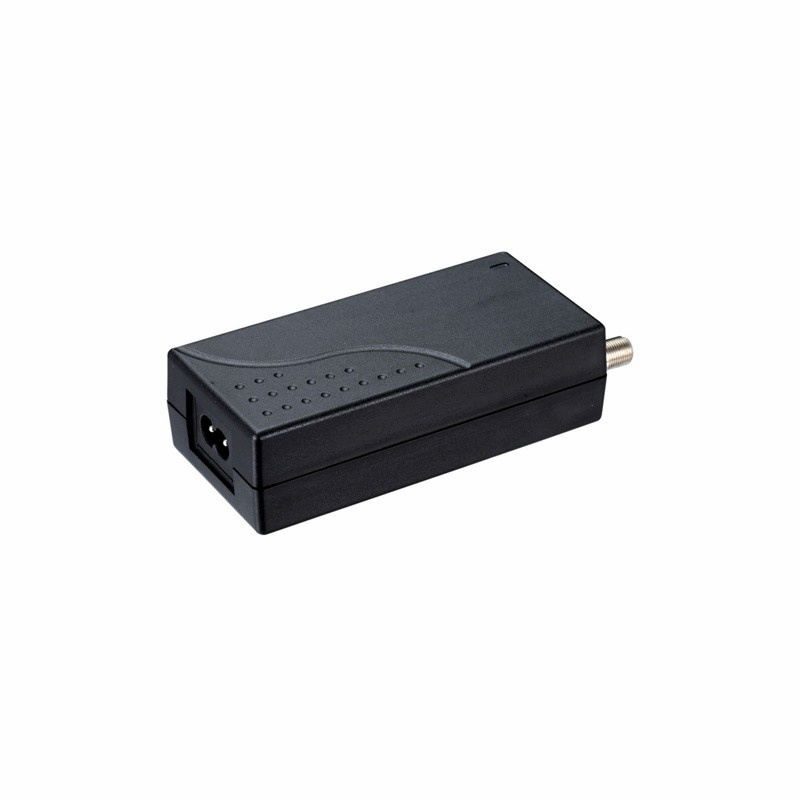

Switching power adapter-desktop type |
|
Model information |
YS80-F |
|
Power: |
80W max. |
|
Input： |
100-240VAC 50/60Hz |
|
Output Voltage: |
5-48V |
|
Output Current: |
0.1-6.25A |
|
Input current: |
1.9A max. |
|
Inrush Current: |
90 Amps max. at 230VAC/50Hz,full load |
|
Leakage Current: |
0.25mA Max. at 264VAC input |
|
Energy Efficiency Level VI : |
CoC 5 / DoE 6 / CEC VI |
|
No Load Power Consumption ： |
＜0.15W |
|
Protections： |
Short Circuit /Over Current /Over Voltage |
|
Short Circuit Protection (SCP)： |
Protection to Zero Voltage |
|
Over Voltage Protection (OVP): |
≤Vout*150% |
|
Over Current Protection (OCP): |
110%-180% |
|
Working TEMP.: |
-20°C-50°C |
|
Working Humidity： |
5%-90% RH non-condensing |
|
Storage TEMP.,Humidity and altitude: |
-40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
|
Input Plug: |
EU,US,UK,AU etc. type according to customer's choice |
|
Certificates and approvals: |
UL,CE,EMC,,FCC,RoHS,REACH |
|
EMC Regulation compliance according to standard EN50083-2 |
EN55024:1998 (Immunity)
EN550022 (Conducted Disturbance at Mains Terminals) class BEN55013(30MHz to 1000MHz , the "absorbing clamp method " radiated disturbance power ) |
|
CE mark according to EN60950-1 Low Voltage Directive |
Meets the Limits of EN61000-3-2 (Harmonic Current Emissions)
EN61000-3-3 (Voltage Fluctuations + Flicker)
EN61000-4-2 (Electrolitic Discharge –ESD)
EN61000-4-3 (Radio-Frequency, Continuous Radiated Disturbance)
EN61000-4-4 (Electrical Fast Transient /Burst Immunity)
EN61000-4-5 (Lightening Surge)
EN61000-4-6 (Conducted RF Immunity)
EN6000-4-11 (AC input Voltage Periodic & Random Disturbance) |
|
RoHs compliance |
ROHS directive "2011/65/EU " |
|
Surge test |
Phase angle: 90, 270 degrees, - Pulse Repetition rate: 60 sec. combination wave and ring wave ±6KV |
|
MTBF: |
100000 hours minimum at full load at 25℃ ambient |
|
Burn-in |
The power supply shall be burn-in for 2 hours under nominal input and 100% load at ambient temperature of25 degrees C |
|
Life: |
continuously operation for3-5 years alternative |
|
Dimension: |
115.5x56x33mm |
|
Weight: |
350g |
|
Packing: |
50PCS/CTN,34*31*37cm |
