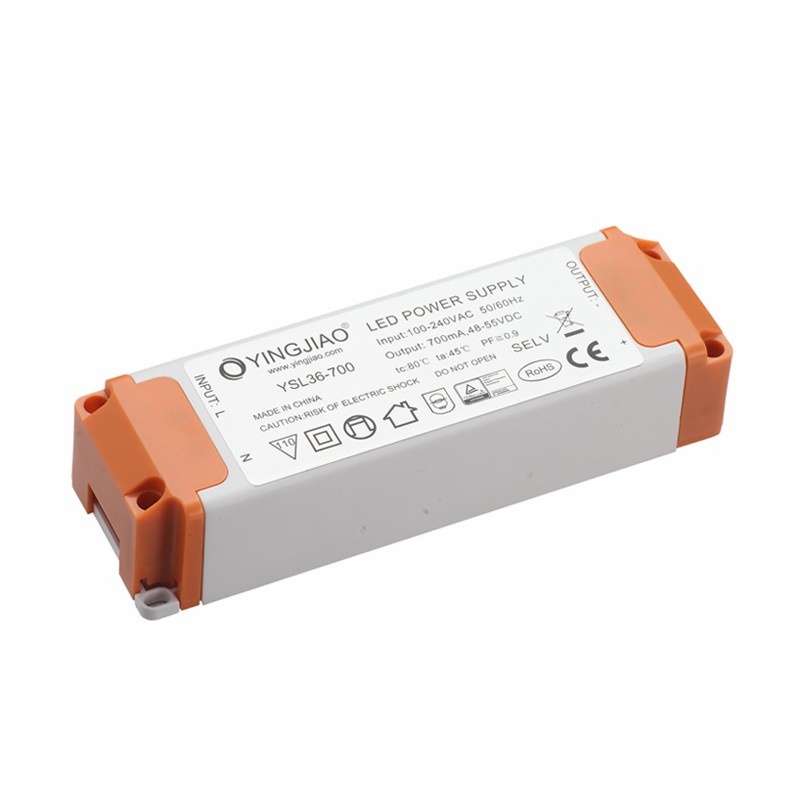

Dimming LED Power Supply

- Input voltage: 220-240V/100-120V
- Input Frequency: 50/60Hz
- Dimming with leading edge and trailing edge
- Smooth dimming compatible with most dimmers
- Dimming range 1-100%
- Safety standard: EN61347-1, EN61347-2, UL8750+1310
- EMI standard: EN55015
- EMS standard: EN61547
- Harmonic: EN61000-3-2
- Directive 2009/125/EC
- ERP: EU2019/2020
- Short Circuit, over current and over voltage protection
- Over temperature Protection
- 100% full load burn in test
- Auto restart after remove of fault conditions
- RoHS Compliance

Description
Details

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL36-D	10W	230V/120V AC	350mA	20-28V	≥0.9	±5%	85%	133x42x30mm
YSL36-D	10W	230V/120V AC	500mA	15-20V	≥0.9	±5%	85%	133x42x30mm
YSL36-D	12W	230V/120V AC	350mA	28-34V	≥0.9	±5%	85%	133x42x30mm
YSL36-D	12W	230V/120V AC	500mA	20-24V	≥0.9	±5%	85%	133x42x30mm
YSL36-D	18W	230V/120V AC	350mA	40-51V	≥0.9	±5%	85%	133x42x30mm
YSL36-D	18W	230V/120V AC	500mA	30-36V	≥0.9	±5%	85%	133x42x30mm
YSL36-D	18W	230V/120V AC	700mA	20-25V	≥0.9	±5%	85%	133x42x30mm

Product Category

TRIAC Dimming Mode YSL36-D Series YSL36-D

Dimming LED Power Supply
