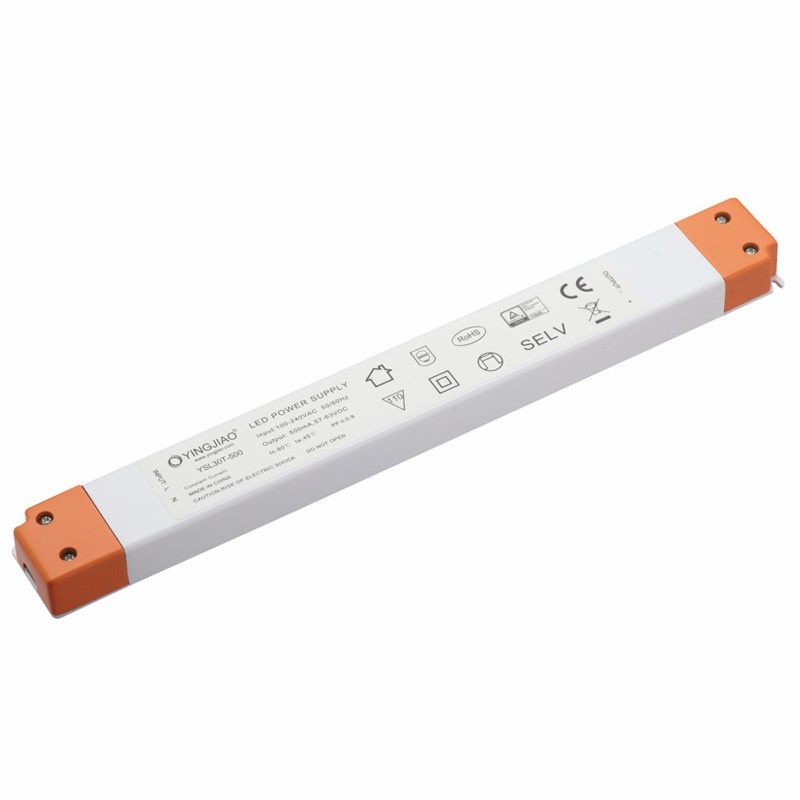

LineType LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL30T-12	45W	220-240V AC	12V	3.75A	≥0.9	±5%	88%	251x30x17mm
YSL30T-24	45W	220-240V AC	24V	1.875A	≥0.9	±5%	89%	251x30x17mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL30T-12	30W	90-265V AC	12V	2.5A	≥0.9	±5%	88%	251x30x17mm
YSL30T-24	30W	90-265V AC	24V	1.25A	≥0.9	±5%	89%	251x30x17mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL30T-350	30W	220-240V AC	700mA	64V	≥0.9	±5%	88%	251x30x17mm
YSL30T-500	30W	220-240V AC	1050mA	42V	≥0.9	±5%	88%	251x30x17mm
YSL30T-700	30W	220-240V AC	1400mA	32V	≥0.9	±5%	88%	251x30x17mm
YSL30T-1050	30W	220-240V AC	2100mA	21V	≥0.9	±5%	88%	251x30x17mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL30T-350	30W	90-265V AC	350mA	85V	≥0.9	±5%	88%	251x30x17mm
YSL30T-500	30W	90-265V AC	500mA	60V	≥0.9	±5%	88%	251x30x17mm
YSL30T-700	30W	90-265V AC	700mA	42.8V	≥0.9	±5%	88%	251x30x17mm
YSL30T-1050	30W	90-265V AC	1050mA	28.5V	≥0.9	±5%	88%	251x30x17mm
