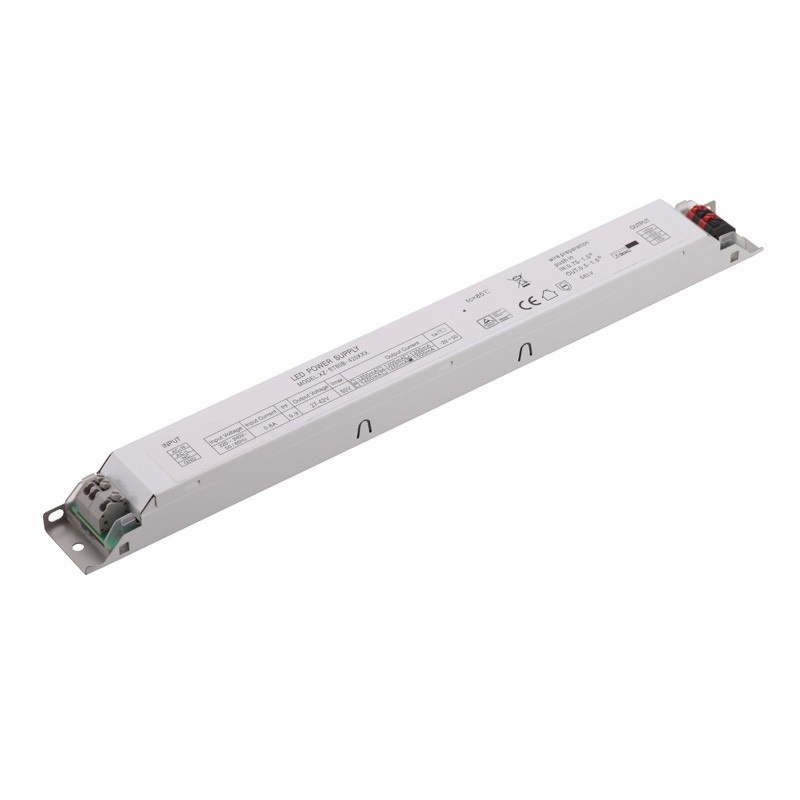

LineType LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EaN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Super Slim Design

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL60B-12	60W	220-240V AC	12V	5A	≥0.9	±5%	90%	280x30x28mm
YSL60B-24	640W	220-240V AC	24V	2.5A	≥0.9	±5%	92%	280x30x28mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL60B-12	50W	90-265V AC	12V	4.16A	≥0.95	±5%	90%	280x30x28mm
YSL60B-24	50W	90-265V AC	24V	2.08A	≥0.95	±5%	92%	280x30x28mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL60B-700	60W	220-240V AC	700mA	85V	≥0.9	±5%	92%	280x30x28mm
YSL60B-1050	60W	220-240V AC	1050mA	57V	≥0.9	±5%	92%	280x30x28mm
YSL60B-1400	60W	220-240V AC	1400mA	42V	≥0.9	±5%	92%	280x30x28mm
YSL60B-2100	60W	220-240V AC	2100mA	28V	≥0.9	±5%	92%	280x30x28mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL60B-700	50W	90-265V AC	700mA	71V	≥0.95	±5%	92%	280x30x28mm
YSL60B-1050	50W	90-265V AC	1050mA	47V	≥0.95	±5%	92%	280x30x28mm
YSL60B-1400	50W	90-265V AC	1400mA	35V	≥0.95	±5%	92%	280x30x28mm
YSL60B-2100	50W	90-265V AC	2100mA	23V	≥0.95	±5%	92%	280x30x28mm
