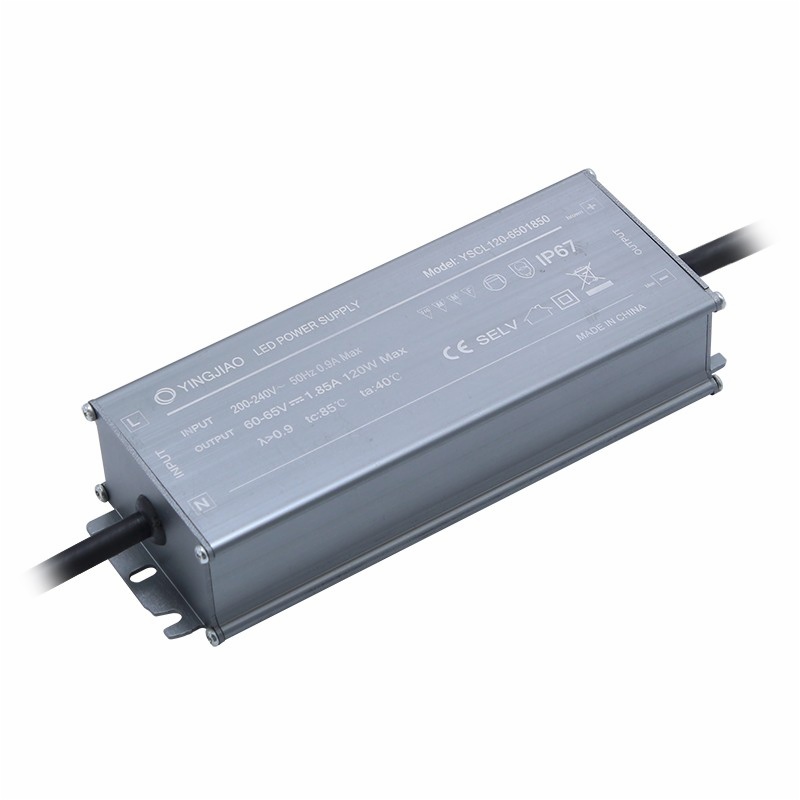

Dimming LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- IP67 Protection rating

Description
Details

Triac Dimming

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSCL60-D	36W	230V/120V AC	12V	3A	≥0.9	±5%	85%	207x71x35mm
YSCL60-D	36W	230V/120V AC	24V	1.5A	≥0.9	±5%	85%	207x71x35mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSCL60-D	36W	230V/120V AC	500mA	60V	≥0.9	±5%	85%	207x71x35mm
YSCL60-D	36W	230V/120V AC	700mA	42V	≥0.9	±5%	85%	207x71x35mm
YSCL60-D	36W	230V/120V AC	1050mA	28V	≥0.9	±5%	85%	207x71x35mm

0-10V Dimming

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSCL60-D	60W	230V/120V AC	12V	3.3A	≥0.9	±5%	85%	207x71x35mm
YSCL60-D	60W	230V/120V AC	24V	1.67A	≥0.9	±5%	85%	207x71x35mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSCL60-D	60W	230V/120V AC	1050mA	57V	≥0.9	±5%	85%	207x71x35mm
YSCL60-D	60W	230V/120V AC	1400mA	42V	≥0.9	±5%	85%	207x71x35mm
YSCL60-D	60W	230V/120V AC	2100mA	28V	≥0.9	±5%	85%	207x71x35mm
