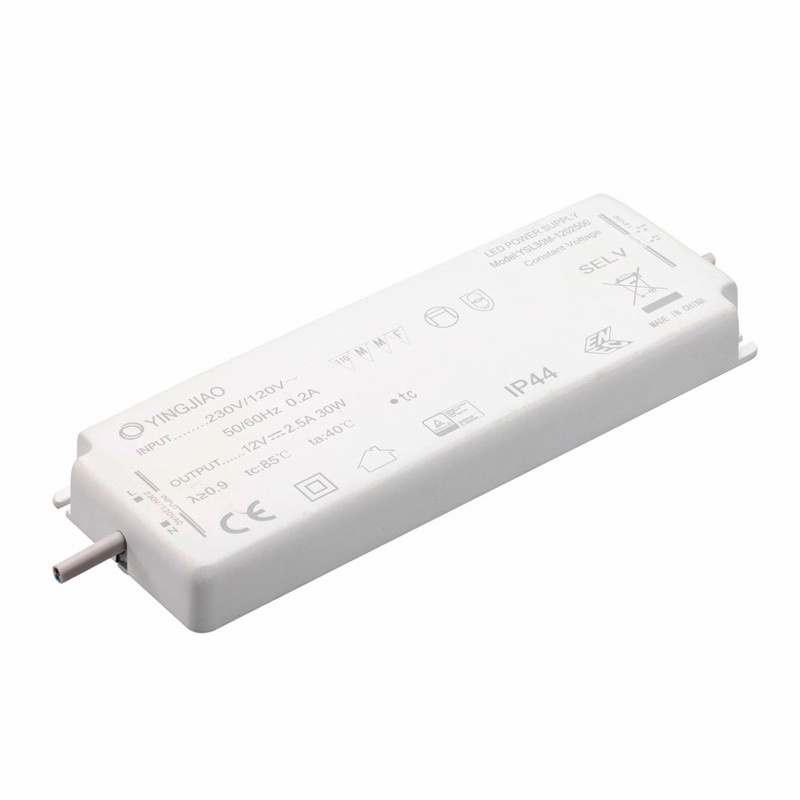

IP44 Super Thin LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP44 protection rating

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL100M-12	100W	220-240V AC	12V	8.33A	≥0.9	±5%	90%	158x51x18mm
YSL100M-24	100W	220-240V AC	24V	4.16A	≥0.9	±5%	92%	158x51x18mm
YSL100M-36	100W	220-240V AC	36V	2.77A	≥0.9	±5%	92%	158x51x18mm
YSL100M-48	100W	220-240V AC	48V	2.08A	≥0.9	±5%	92%	158x51x18mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL100M-12	75W	90-265V AC	12V	6.25A	≥0.9	±5%	92%	158x51x18mm
YSL100M-24	75W	90-265V AC	24V	3.125A	≥0.9	±5%	92%	158x51x18mm
YSL100M-36	75W	90-265V AC	36V	2.08A	≥0.9	±5%	92%	158x51x18mm
YSL100M-48	75W	90-265V AC	48V	1.56A	≥0.9	±5%	92%	158x51x18mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL100M-1050	100W	220-240V AC	1050mA	95V	≥0.9	±5%	92%	158x51x18mm
YSL100M-1400	100W	220-240V AC	1400mA	71V	≥0.9	±5%	92%	158x51x18mm
YSL100M-2100	100W	220-240V AC	2100mA	47V	≥0.9	±5%	92%	158x51x18mm
YSL100M-4200	100W	220-240V AC	4200mA	233.8V	≥0.9	±5%	92%	158x51x18mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL100M-1050	100W	90-265V AC	1050mA	95V	≥0.9	±5%	92%	158x51x18mm
YSL100M-1400	100W	90-265V AC	1400mA	71V	≥0.9	±5%	92%	158x51x18mm
YSL100M-2100	100W	90-265V AC	2100mA	47V	≥0.9	±5%	92%	158x51x18mm
YSL100M-4200	100W	90-265V AC	4200mA	23.8V	≥0.9	±5%	92%	158x51x18mm
