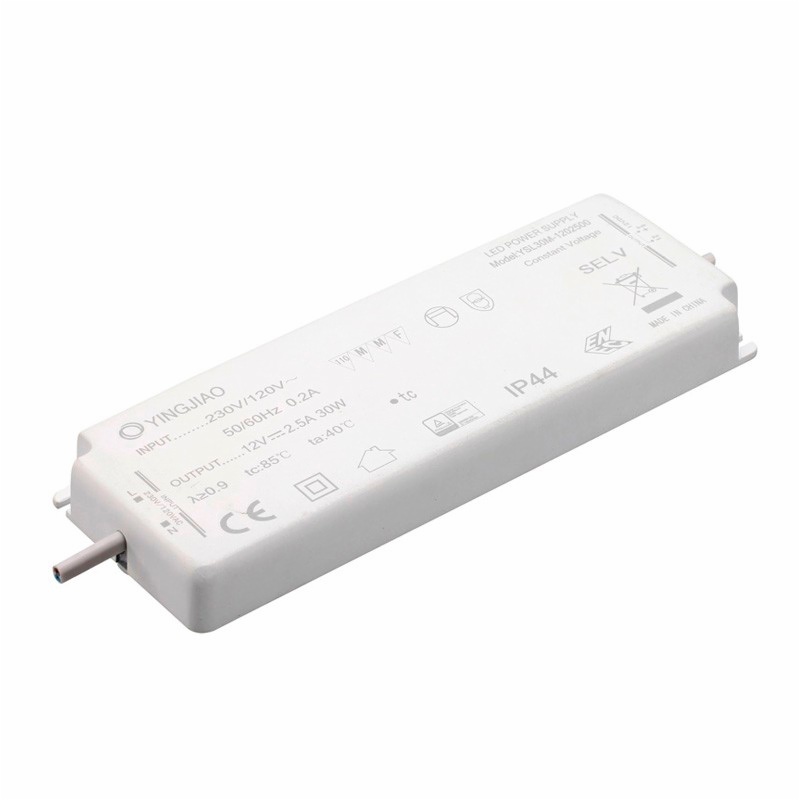

IP44 Super Thin LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP44 protection rating

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL50M-12	50W	220-240V AC	12V	4.16A	≥0.9	±5%	86%	158x51x18mm
YSL50M-24	50W	220-240V AC	24V	2.08A	≥0.9	±5%	88%	158x51x18mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL50M-12	50W	90-265V AC	12V	4.16A	≥0.9	±5%	86%	158x51x18mm
YSL50M-24	50W	90-265V AC	24V	1.25A	≥0.9	±5%	88%	158x51x18mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Current (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL50M-500	50W	220-240V AC	500mA	100V	≥0.9	±5%	88%	158x51x18mm
YSL50M-700	50W	220-240V AC	700mA	72V	≥0.9	±5%	88%	158x51x18mm
YSL50M-1050	50W	220-240V AC	1050mA	48V	≥0.9	±5%	88%	158x51x18mm
YSL50M-1400	50W	220-240V AC	1400mA	36V	≥0.9	±5%	88%	158x51x18mm

Model	Power (max.)	Input Voltage	Output Current	Output Current (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL50M-500	50W	90-265V AC	500mA	100V	≥0.9	±5%	88%	158x51x18mm
YSL50M-700	50W	90-265V AC	700mA	72V	≥0.9	±5%	88%	158x51x18mm
YSL50M-1050	50W	90-265V AC	1050mA	48V	≥0.9	±5%	88%	158x51x18mm
YSL50M-1400	50W	90-265V AC	1400mA	36V	≥0.9	±5%	88%	158x51x18mm
