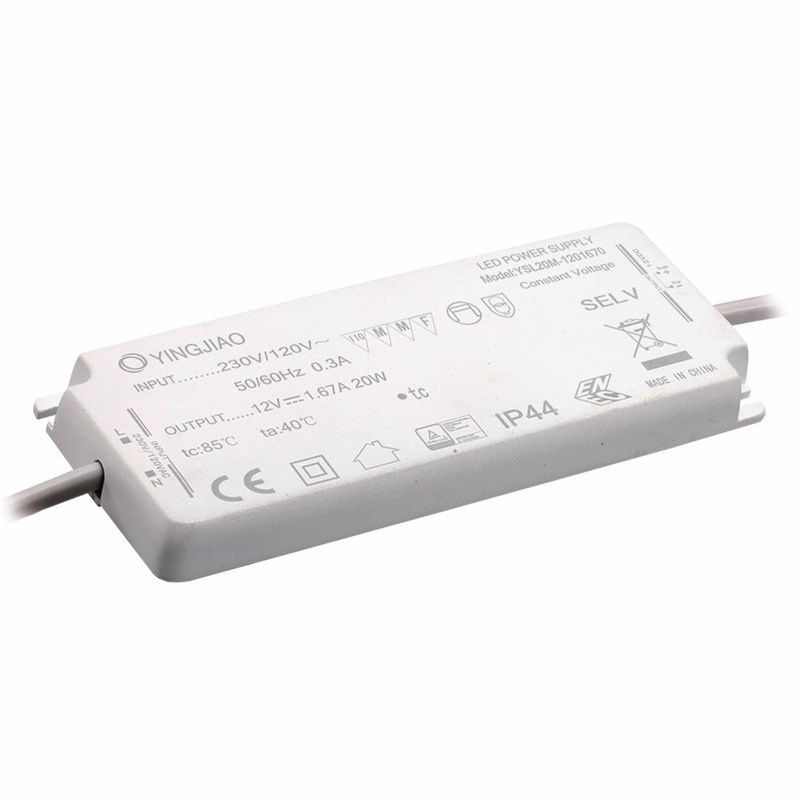

IP44 Super Thin LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP44 protection rating

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL20M-12	20W	220-240V AC	12V	1.67A	±5%	78%	130x42x17mm
YSL20M-24	20W	220-240V AC	24V	0.83A	±5%	79%	130x42x17mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL20M-12	20W	90-265V AC	12V	1.67A	±5%	78%	130x42x17mm
YSL20M-24	20W	90-265V AC	24V	0.83A	±5%	79%	130x42x17mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL20-500	20W	220-240V AC	500mA	40V	≥0.9	±5%	85%	130x42x17mm
YSL20-700	20W	220-240V AC	700mA	28V	≥0.9	±5%	85%	130x42x17mm
YSL20-1050	20W	220-240V AC	1050mA	19V	≥0.9	±5%	85%	130x42x17mm
YSL20-1400	20W	220-240V AC	1400mA	14V	≥0.9	±5%	85%	130x42x17mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL36-700	20W	90-265V AC	700mA	40V	≥0.9	±5%	85%	130x42x17mm
YSL36-1050	20W	90-265V AC	1050mA	28V	≥0.9	±5%	85%	130x42x17mm
YSL36-1400	20W	90-265V AC	1400mA	19V	≥0.9	±5%	85%	130x42x17mm
YSL36-2100	20W	90-265V AC	2100mA	14V	≥0.9	±5%	85%	130x42x17mm
