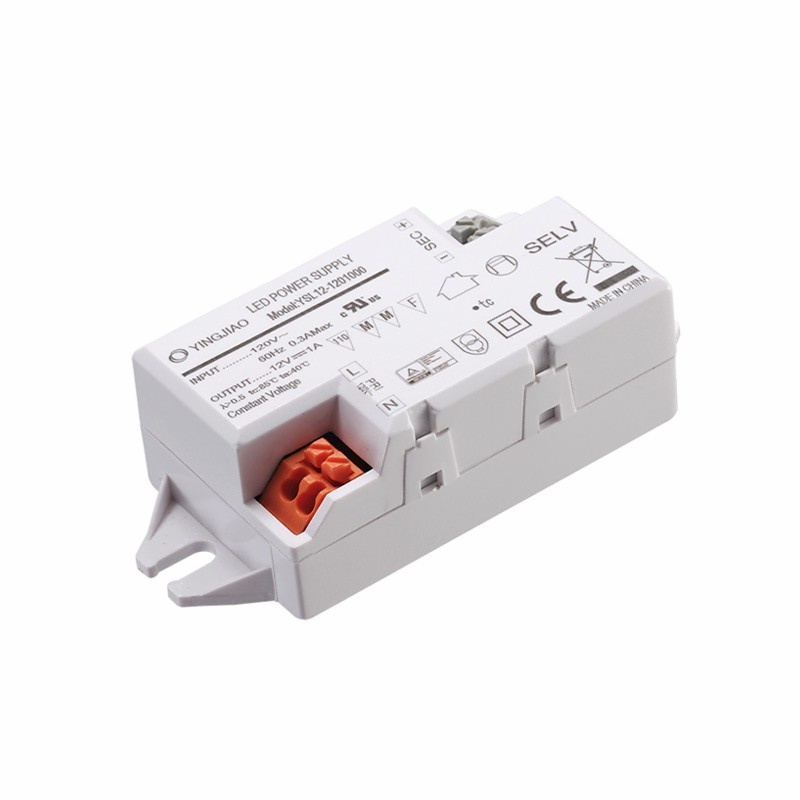

YSL12 Series YSL12

Item Code:YSL12 Features:

Standard LED Power Supply

- Universal Input: 90-265V AC 50/60Hz

- RoHS Compliance

- EMI Standard EN55015

- Safety Standard: EN61347-1, EN61347-2-13, UL8750

- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption

- Short Circuit, Over Current and Over Voltage Protection

- Over temperature protection

- 100% full load burn-in test

- Auto restart after remove of fault conditions

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL12-12	12W	220-240V AC	12V	1A	±5%	＜1%	84%	82x36x24mm
YSL12-24	12W	220-240V AC	24V	0.5A	±5%	＜1%	85%	82x36x24mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL12-12	12W	90-265V AC	12V	1A	±5%	＜1%	84%	82x36x24mm
YSL12-24	12W	90-265V AC	24V	0.5A	±5%	＜1%	85%	82x36x24mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL12-350	12W	220-240V AC	350mA	34V	±5%	＜1%	88%	82x36x24mm
YSL12-500	12W	220-240V AC	500mA	24V	±5%	＜1%	88%	82x36x24mm
YSL12-700	12W	220-240V AC	700mA	17V	±5%	＜1%	88%	82x36x24mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL12-350	12W	90-265V AC	350mA	34V	±5%	＜1%	88%	82x36x24mm
YSL12-500	12W	90-265V AC	500mA	24V	±5%	＜1%	88%	82x36x24mm
YSL12-700	12W	90-265V AC	700mA	17V	±5%	＜1%	88%	82x36x24mm
