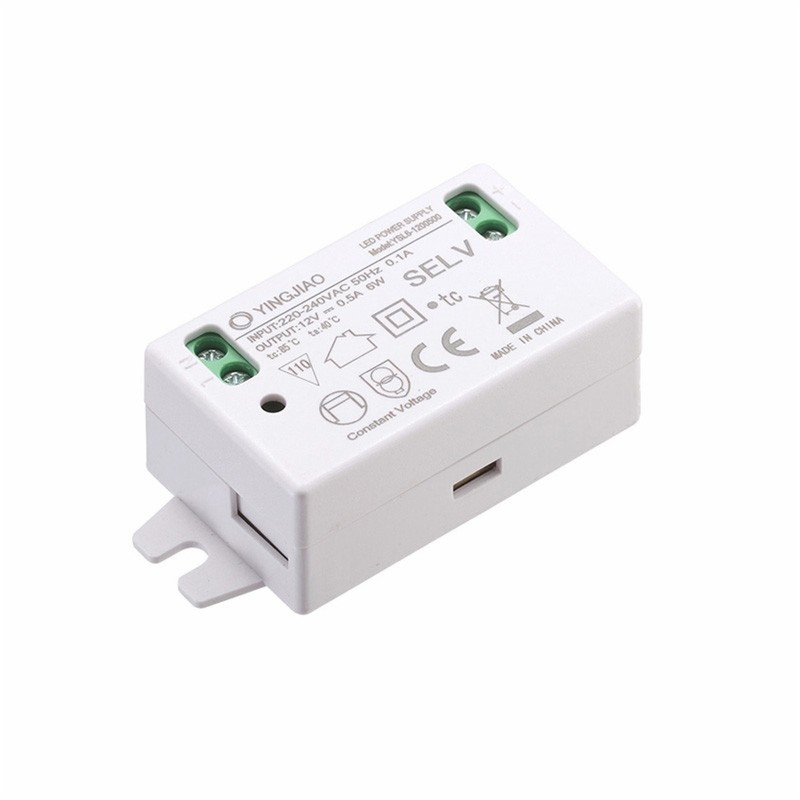

YSL6 Series YSL6

Item Code:YSL6 Features:

Standard LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL6-12	6W	220-240V AC	12V	0.5A	±5%	＜1%	78%	67.5x31x21mm
YSL6-24	6W	220-240V AC	12V	0.25A	±5%	＜1%	78%	67.5x31x21mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL6-12	6W	90-265V AC	12V	0.5A	±5%	＜1%	78%	67.5x31x21mm
YSL6-24	6W	90-265V AC	12V	0.25A	±5%	＜1%	78%	67.5x31x21mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL6-350	6W	220-240V AC	350mA	17V	±5%	＜1%	85%	67.5x31x21mm
YSL6-500	6W	220-240V AC	500mA	12V	±5%	＜1%	85%	67.5x31x21mm
YSL6-700	6W	220-240V AC	700mA	8.5V	±5%	＜1%	85%	67.5x31x21mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL6-350	6W	90-265V AC	350mA	17V	±5%	＜1%	85%	67.5x31x21mm
YSL6-500	6W	90-265V AC	500mA	12V	±5%	＜1%	85%	67.5x31x21mm
YSL6-700	6W	90-265V AC	700mA	8.5V	±5%	＜1%	85%	67.5x31x21mm
