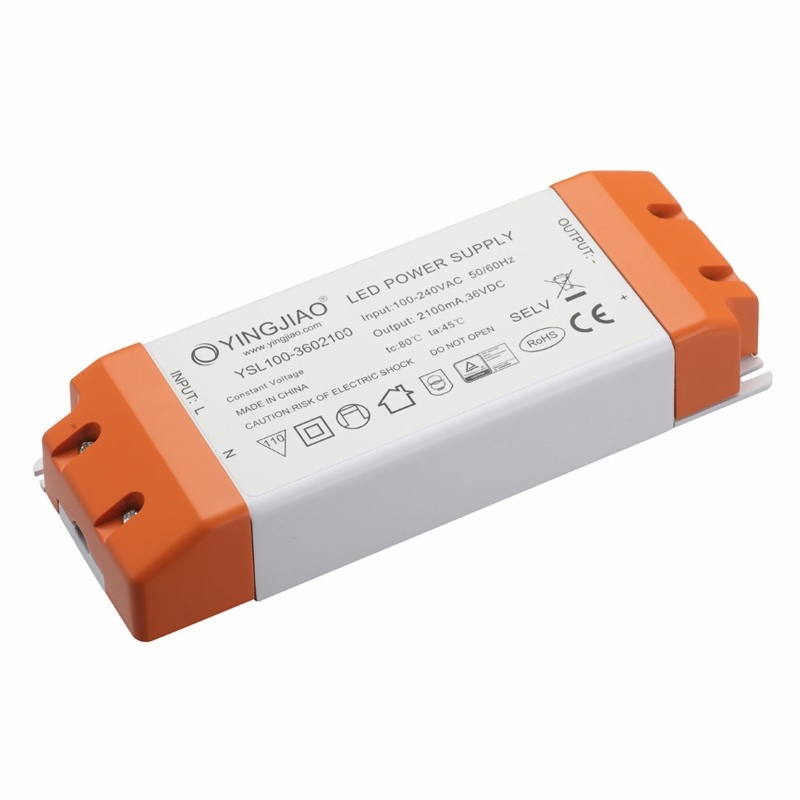

YSL100 Series YSL100

Item Code:YSL100 Features:

Standard LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL100-12	120W	220-240V AC	12V	10A	≥0.9	±5%	90%	180x66x32mm
YSL100-24	120W	220-240V AC	24V	5A	≥0.9	±5%	92%	180x66x32mm
YSL100-36	120W	220-240V AC	36V	3.33A	≥0.9	±5%	92%	180x66x32mm
YSL100-48	120W	220-240V AC	48V	2.5A	≥0.9	±5%	92%	180x66x32mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL100-12	100W	90-265V AC	12V	8.33A	≥0.9	±5%	92%	180x66x32mm
YSL100-24	100W	90-265V AC	24V	4.16A	≥0.9	±5%	92%	180x66x32mm
YSL100-36	100W	90-265V AC	36V	2.77A	≥0.9	±5%	92%	180x66x32mm
YSL100-48	100W	90-265V AC	48V	2.08A	≥0.9	±5%	92%	180x66x32mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL100-1400	120W	220-240V AC	1400mA	85V	≥0.9	±5%	92%	180x66x32mm
YSL100-2100	120W	220-240V AC	2100mA	57V	≥0.9	±5%	92%	180x66x32mm
YSL100-3600	120W	220-240V AC	3600mA	33V	≥0.9	±5%	92%	180x66x32mm
YSL100-4200	120W	220-240V AC	4800mA	28V	≥0.9	±5%	92%	180x66x32mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL100-1400	100W	90-265V AC	1400mA	71V	≥0.95	±5%	92%	180x66x32mm
YSL100-2100	100W	90-265V AC	2100mA	47V	≥0.95	±5%	92%	180x66x32mm
YSL100-3600	100W	90-265V AC	3600mA	27V	≥0.95	±5%	92%	180x66x32mm
YSL100-4200	100W	90-265V AC	4200mA	23V	≥0.95	±5%	92%	180x66x32mm
