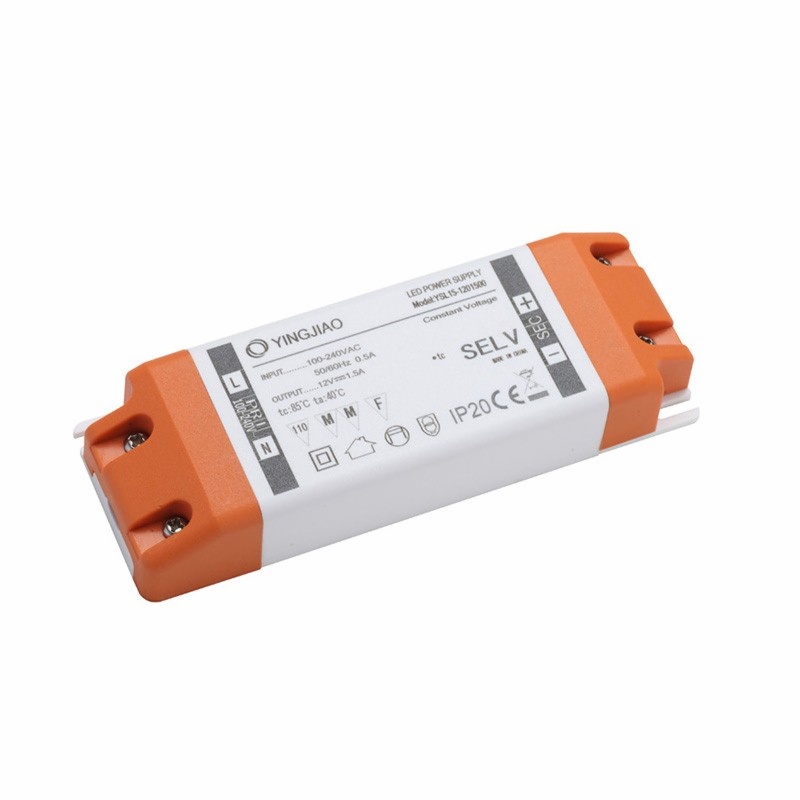

YSL15 Series YSL15

Item Code:YSL15 Features:

Standard LED Power Supply

- Universal Input: 90-265V AC 50/60Hz

- RoHS Compliance

- EMI Standard EN55015

- Safety Standard: EN61347-1, EN61347-2-13, UL8750

- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption

- Short Circuit, Over Current and Over Voltage Protection

- Over temperature protection

- 100% full load burn-in test

- Auto restart after remove of fault conditions

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL15-12	20W	220-240V AC	12V	1.67A	±5%	＜1%	88%	120x42x20mm
YSL15-24	20W	220-240V AC	24V	0.83A	±5%	＜1%	89%	120x42x20mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL15-12	20W	90-265V AC	12V	1.67A	±5%	＜1%	88%	120x42x20mm
YSL15-24	20W	90-265V AC	24V	0.83A	±5%	＜1%	89%	120x42x20mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL15-350	20W	220-240V AC	350mA	57V	±5%	＜1%	88%	120x42x20mm
YSL15-500	20W	220-240V AC	500mA	40V	±5%	＜1%	88%	120x42x20mm
YSL15-700	20W	220-240V AC	700mA	28V	±5%	＜1%	88%	120x42x20mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	Voltage Tolerance	Riple(P-P)	Efficiency	Dimension(LxWxH)
YSL15-350	20W	220-240V AC	350mA	57V	±5%	＜1%	88%	120x42x20mm
YSL15-500	20W	220-240V AC	500mA	40V	±5%	＜1%	88%	120x42x20mm
YSL15-700	20W	220-240V AC	700mA	28V	±5%	＜1%	88%	120x42x20mm
