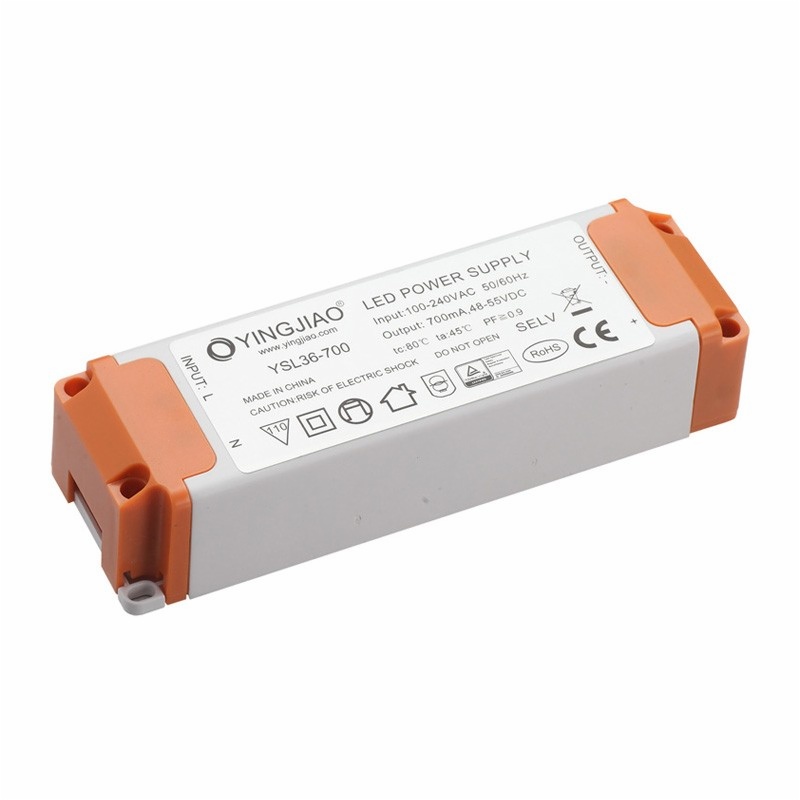

Standard LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL36-12	36W	220-240V AC	12V	3A	≥0.9	±5%	87%	133x42x30mm
YSL36-24	36W	220-240V AC	24V	1.5A	≥0.9	±5%	88%	133x42x30mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL36-12	36W	90-265V AC	12V	3A	≥0.9	±5%	87%	133x42x30mm
YSL36-24	36W	90-265V AC	24V	1.5A	≥0.9	±5%	88%	133x42x30mm

Constant Current

Model	Power (max.)	Input Voltage	Output Voltage	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL36-700	36W	220-240V AC	700mA	57V	≥0.9	±5%	88%	133x42x30mm
YSL36-1050	36W	220-240V AC	1050mA	38V	≥0.9	±5%	88%	133x42x30mm
YSL36-1400	36W	220-240V AC	1400mA	28.5V	≥0.9	±5%	88%	133x42x30mm
YSL36-2100	36W	220-240V AC	2100mA	19V	≥0.9	±5%	88%	133x42x30mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL36-700	36W	90-265V AC	700mA	51V	≥0.9	±5%	90%	133x42x30mm
YSL36-1050	36W	90-265V AC	1050mA	34V	≥0.9	±5%	90%	133x42x30mm
YSL36-1400	36W	90-265V AC	1400mA	25V	≥0.9	±5%	90%	133x42x30mm
YSL36-2100	36W	90-265V AC	2100mA	17V	≥0.9	±5%	90%	133x42x30mm
