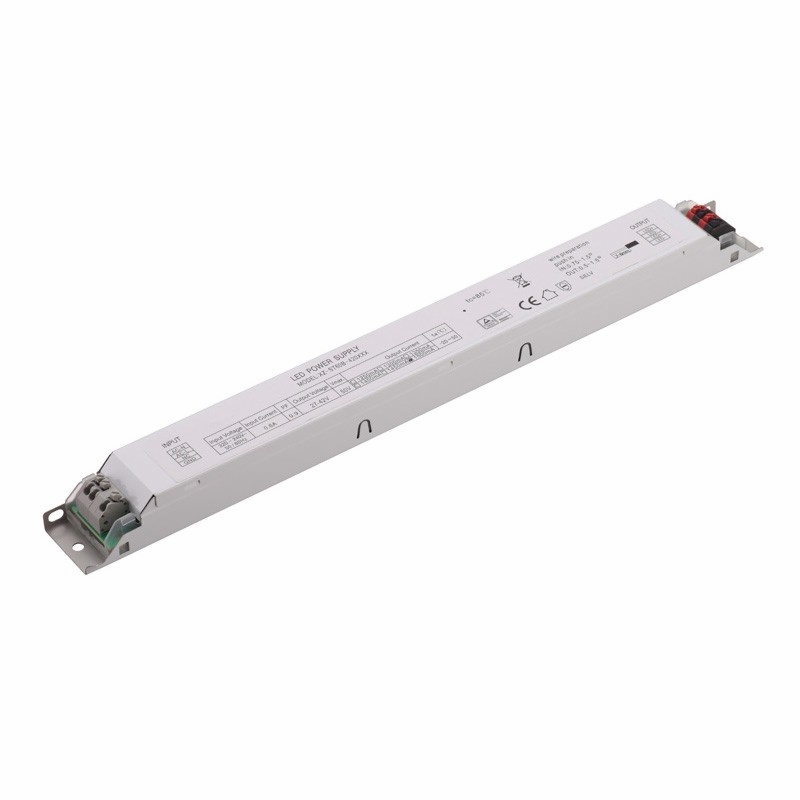

LineType LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EaN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Super Slim Design

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL20B-12	20W	220-240V AC	12V	1.66A	≥0.95	±5%	85%	210x30x20mm
YSL20B-24	20W	220-240V AC	24V	0.83A	≥0.95	±5%	86%	210x30x20mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL20B-12	20W	90-265V AC	12V	1.66A	≥0.95	±5%	85%	210x30x20mm
YSL20B-24	20W	90-265V AC	24V	0.83A	≥0.95	±5%	86%	210x30x20mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL20B-500	20W	220-240V AC	500mA	100V	≥0.95	±5%	88%	210x30x20mm
YSL20B-700	20W	220-240V AC	700mA	71V	≥0.95	±5%	88%	210x30x20mm
YSL20B-1050	20W	220-240V AC	1050mA	47V	≥0.95	±5%	88%	210x30x20mm
YSL20B-1400	20W	220-240V AC	1400mA	35V	≥0.95	±5%	88%	210x30x20mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL20B-500	20W	90-265V AC	500mA	40V	≥0.9	±5%	88%	210x30x20mm
YSL20B-700	20W	90-265V AC	700mA	28.5V	≥0.9	±5%	88%	210x30x20mm
YSL20B-1050	20W	90-265V AC	1050mA	19V	≥0.9	±5%	88%	210x30x20mm
YSL20B-1400	20W	90-265V AC	1400mA	14.2V	≥0.9	±5%	88%	210x30x20mm
