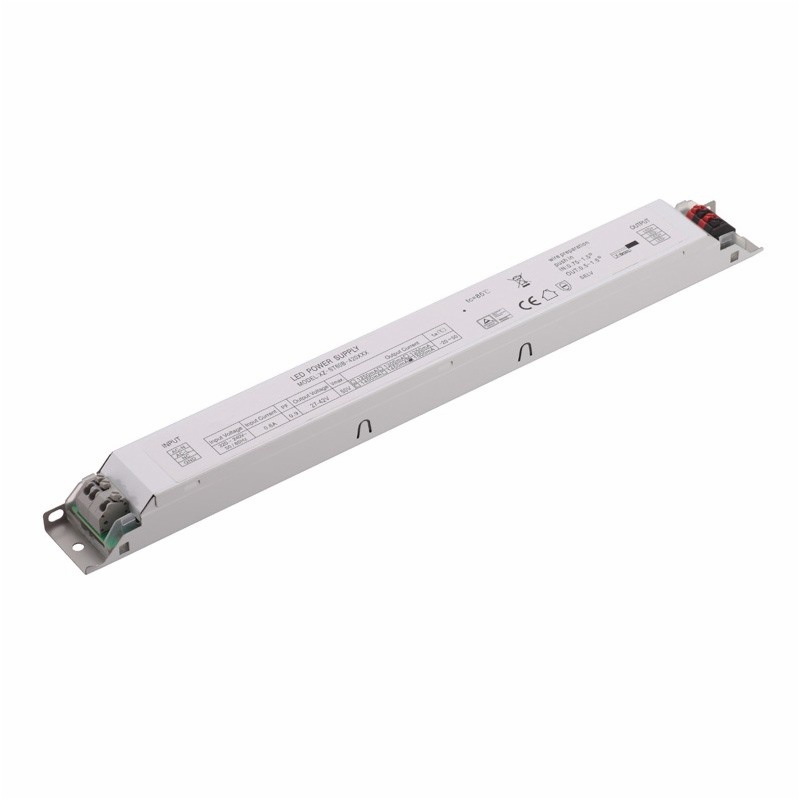

LineType LED Power Supply

- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EaN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Super Slim Design

Description
Details

Constant Voltage

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL40B-12	40W	220-240V AC	12V	3.33A	≥0.95	±5%	86%	250x30x28mm
YSL40B-24	40W	220-240V AC	24V	1.66A	≥0.95	±5%	88%	250x30x28mm

Model	Power (max.)	Input Voltage	Output Voltage	Output Current(max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL40B-12	40W	90-265V AC	12V	2.5A	≥0.95	±5%	86%	250x30x28mm
YSL40B-24	40W	90-265V AC	24V	1.25A	≥0.95	±5%	88%	250x30x28mm

Constant Current

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL40B-500	40W	220-240V AC	500mA	80V	≥0.95	±5%	88%	250x30x28mm
YSL40B-700	40W	220-240V AC	700mA	57V	≥0.95	±5%	88%	250x30x28mm
YSL40B-1050	40W	220-240V AC	1050mA	38V	≥0.95	±5%	88%	250x30x28mm
YSL40B-1400	40W	220-240V AC	1400mA	28V	≥0.95	±5%	88%	250x30x28mm

Model	Power (max.)	Input Voltage	Output Current	Output Voltage (max.)	PF	Voltage Tolerance	Efficiency	Dimension(LxWxH)
YSL40B-500	40W	90-265V AC	500mA	72V	≥0.9	±5%	88%	250x30x28mm
YSL40B-700	40W	90-265V AC	700mA	51V	≥0.9	±5%	88%	250x30x28mm
YSL40B-1050	40W	90-265V AC	1050mA	34V	≥0.9	±5%	88%	250x30x28mm
YSL40B-1400	40W	90-265V AC	1400mA	25V	≥0.9	±5%	88%	250x30x28mm
